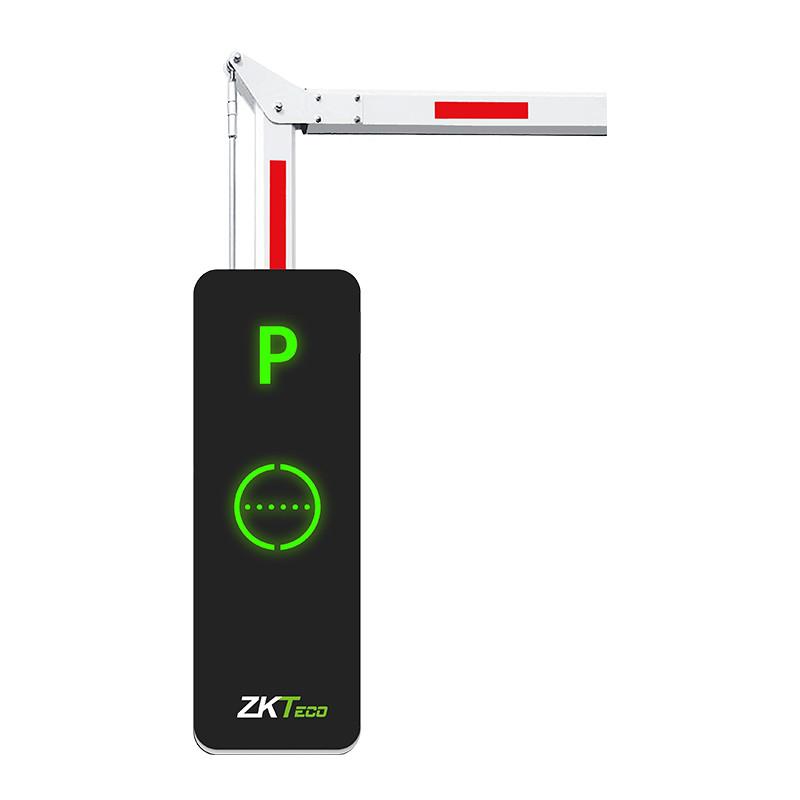

ไม้กั้นรถยนต์ BG1145
ไม้กั้นรถยนต์ BG1145 ยาว 4.5 เมตร
DC 24V brushless barrier gate
Chassis with LED,folding boom(without led)
Power ：110V/220V AC(support choose manually adjust 110V input)
Boom length: 4.5m
(standard main boom is 1.3m , second boom is 3.5m)
Total height limit: 2.2m
Opening&closing times：3S
Spring size:5.5φ
Main and second boom lengths can be customization on the order
Support change direction ，can adjust speed(1.5s~3s,depend on the boom length 1m~4.5m)
L:Chassis is on left,boom is on right
R:Chassis is on right,boom is on left
| Model | BG1145L/R-90 | ||||
| Operating Speed | 2.5s | ||||
| Boom Arm Length | 4.5m | ||||
| Boom Arm Type | Folding boom | ||||
| Chassis Dimensions (W*L*H) | 350*300*1020 (mm) | ||||
| Motor Type | DC 24V brushless motor | ||||
| Motor MCBF | 3 million times | ||||
| Output Power | 120W | ||||
| Rated Current | 6A | ||||
| Power Supply | AC 220V, 50Hz / AC 110V, 60Hz | ||||
| Remote Control Distance | ≤30m | ||||
| Operating Temperature | -35°C to 70°C | ||||
| Operating Humidity | <90% | ||||
| Chassis Weight | 45kg | ||||
