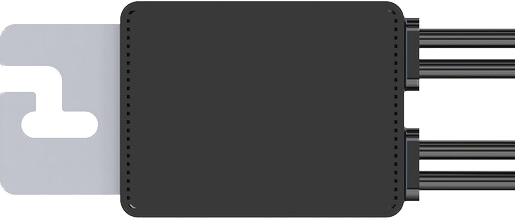

SUN2000-450W-P
Technical Specification
SUN2000-450W-P | Input |
Rated Input DC Power 1 | 450 W |
Absolute maximum input voltage | 80 V |
MPPT operating voltage range | 8 -80 V |
Maximum Short Circuit Current (Isc) | 13 A |
Max. efficiency | 99.5 % |
Weighted efficiency | 99.0 % |
Overvoltage category | II |
Output | |
Max.output voltage | 80 V |
Max. output current | 15 A |
Output bypass 2 | Yes |
Shutdownoutput voltage per optimizer 3 | 0V |
Shutdown outputimpedance per optimizer | 1k ohm ±10 % |
Standard Compliance | |
Safety | IEC62109-1 (class II safety) |
RoHS | Yes |
General Data | |
Dimension (W xH xD) | 71 x138 x25 mm (2.8 x5.4 x1.0 inch) |
Weight (including cables) | 0.55 kg (1.2 lb.) |
Installation part (optional) | Grounding Plate, Grounding Lug, PV Module Frame Plate |
Input connector | StaubliMC4 |
Output connector | StaubliMC4 |
Input wire length | 0.15 m (0.5 ft.) |
Output wire length | 1.2 m (3.9 ft.) 4 |
Operating temperature / humidity range | -40 ℃~85℃5/ 0 %RH~100 %RH |
Degree of protection | IP68 |
Compatible product | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000-30/36/40KTL-M36 |
