Features & Functions
● Preheat start
● Constant current output
● Limiting lamp power
● Lamp open protection
● Lamp fault protection
● Status indication / Remote
DC 5V Signal TUV36W
Lamp on: Max.5V/DC , Max.5mA ; Lamp fault: 0V
Lamp Type
GPH212T5, GPH287T5, GPH303T5, GPH357T5, GPH436T5, GPH793T5, GPH843T5, TUV11W, TUV16W, TUV25W, TUV36T5, TUV36W
Electrical Specification
| Input Mains Voltage | 110~277V±10% |
| Input Line Frequency | 47~63Hz |
| Input Current | Max.0.44A at 110V or 0.20A at 240Vrms |
| Input Power | 14~47W |
| Power Factor | 0.98 typ. |
| Output Frequency | 34KHz |
| Crest Factor | <1.5 |
| Current THD | 15% typ. |
| U-OUT | 350V |
| Preheat Time | 4S |
| Preheat Current | 0.40A typ. |
| Output Current | 0.38~0.43A typ. |
| Lamp Power | 10~40W |
| Efficiency | 85% Max. load |
| Signal Output | Max.5V DC Max.5mA |
| Protections | Lamp Open / Fault |
| Tc-temperature | Max. 70℃ |
| Ta-temperature | -15~40℃ |
| Storage | -40~85℃ |
| Approvals | CE, UL, CUL |
| IP Code | IP20 |

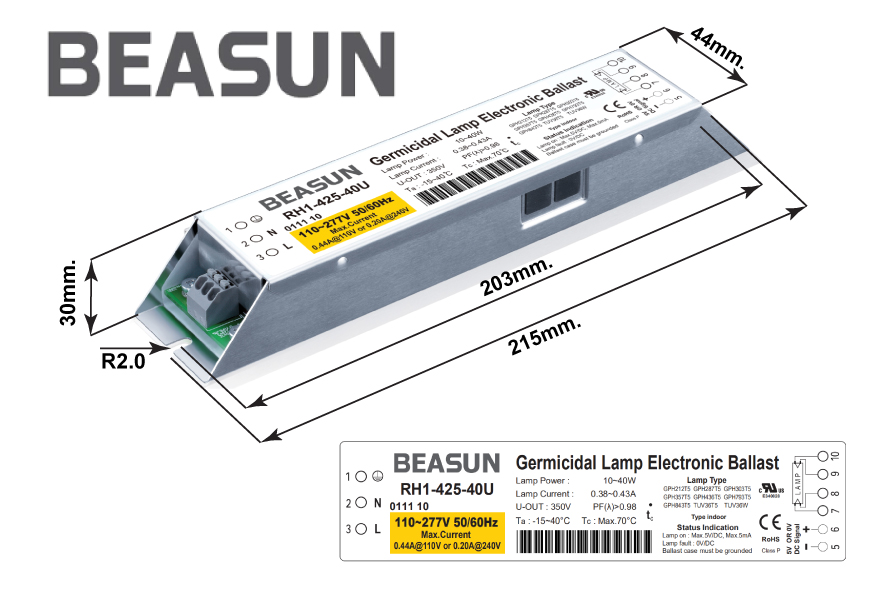

| Dimensions | 215×44×30mm |
